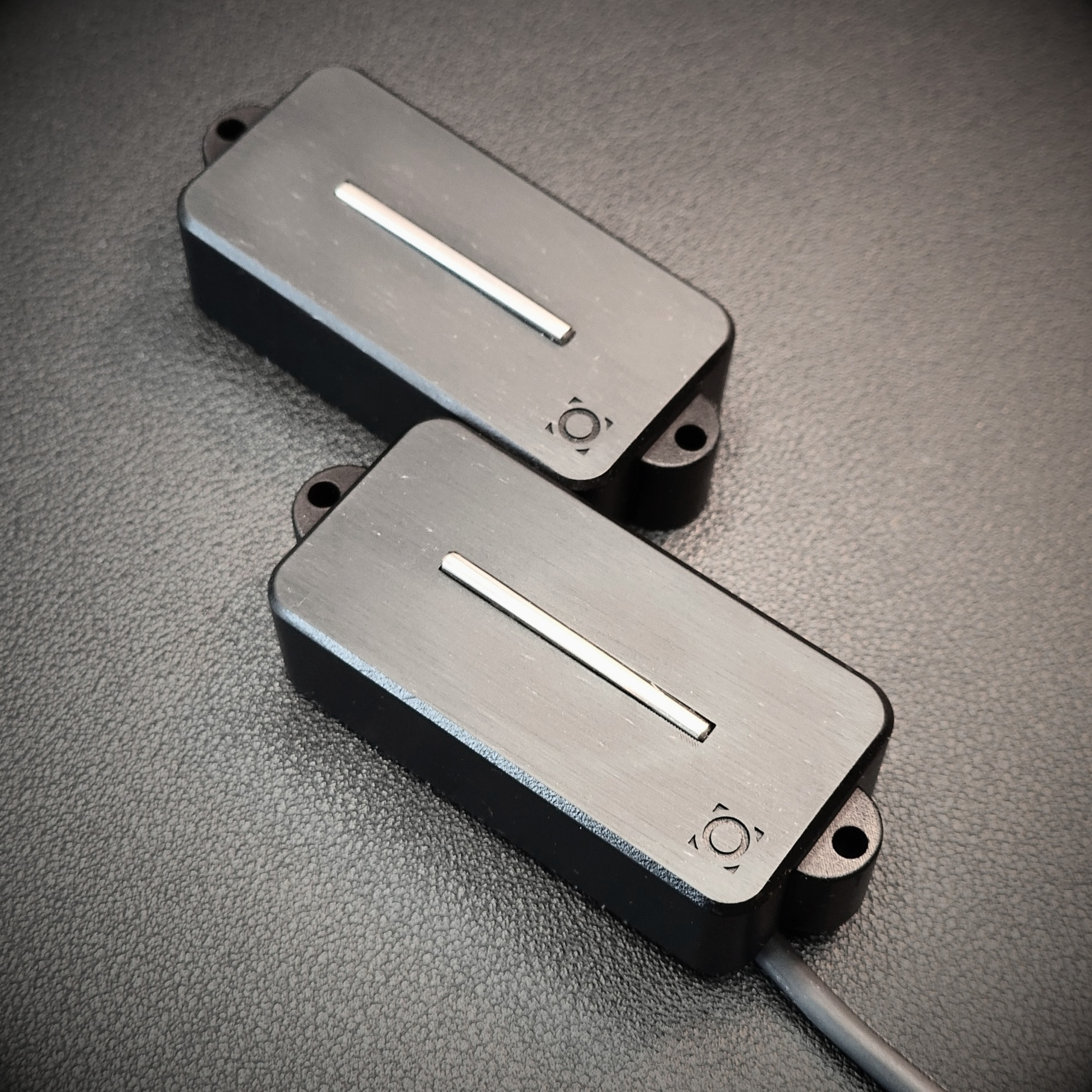

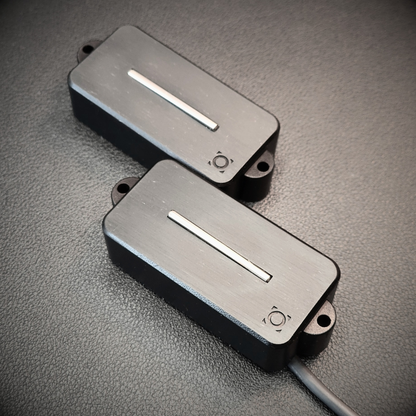

Omnia B4 PS

Omnia B4 PS.

Experience the unaltered tone of your favorite bass.

The Omnia is the ultimate pickup made for maximum clarity, transparency, versatility and balance.

After some feedback on the B4 PQ it was the obvious decision to release a variant focusing on a more essential approach - one voicing, drop-in compatibility on most P style cavities and some tweaks to aim at a more conventional player:

AWG42: For impedance values compatible with usual 250k or 500k pot setups,
Wide coil geometry: To capture the full low end you love in a P bass,
Resonance tuning: Carefully placing and enhancing the resonance peak at the sweet spot.

Neodymium driven - super hot, transparent and dynamic. The chef's recommendation.

Perfect for all tunings and tone shaping options.

Some trivia for the geeks:

The base plate is a PCB with meshed ground plane to get shielding with minimal eddy current losses.

The bobbins and other internal parts are PLA printed with a precision FDM printer while the cover is SLA printed from UV and moisture resistant resin.

The blades are custom laser cut from high permeability metal which is an ideal coil core due to its electromagnetic properties as well as contributing to a balanced sound.

Including:

mounting screws in black or chrome

a high quality, thin and flexible, well-shielded two conductor cable by Sommer.

Customization

If you prefer a different magnet or coil property choice, as well as custom artworks on the covers, contact me directly at info@nova-pickups.com and we'll make it work.

Disclaimer

This is a preorder - Shipping may take up to 6 weeks, but I'll try to get them finished asap. I also believe in transparency - feel free to contact me to get informed about the process of your order.

Specs

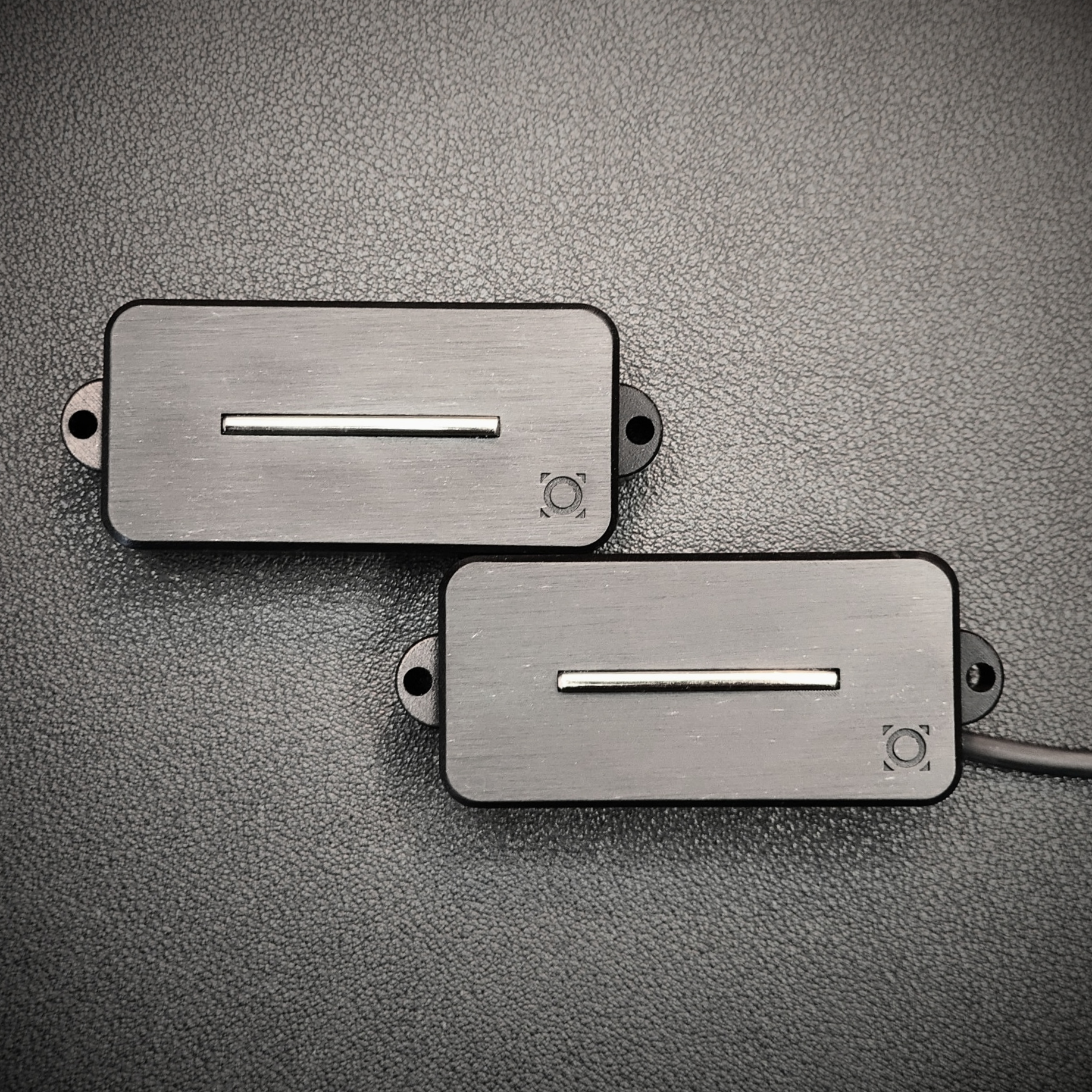

Dimensions: PS (P-Style, single rail): 56 × 27.5mm per half without ears / 66mm with ears. total pickup height 20.5mm, plus ±3mm for cable. Hole spacing 59mm, ear radius 5.6mm, screw hole Ø3mm.

The bobbins in this variant are shaped as flat and wide to enhance low end harmonic capture.

Phase flipping is possible by separating the transparent shielded cable (cold) from ground (bare) and switching transparent and red.

Alternative magnet choices may be available - contact me directly to inquire about customisation options.
