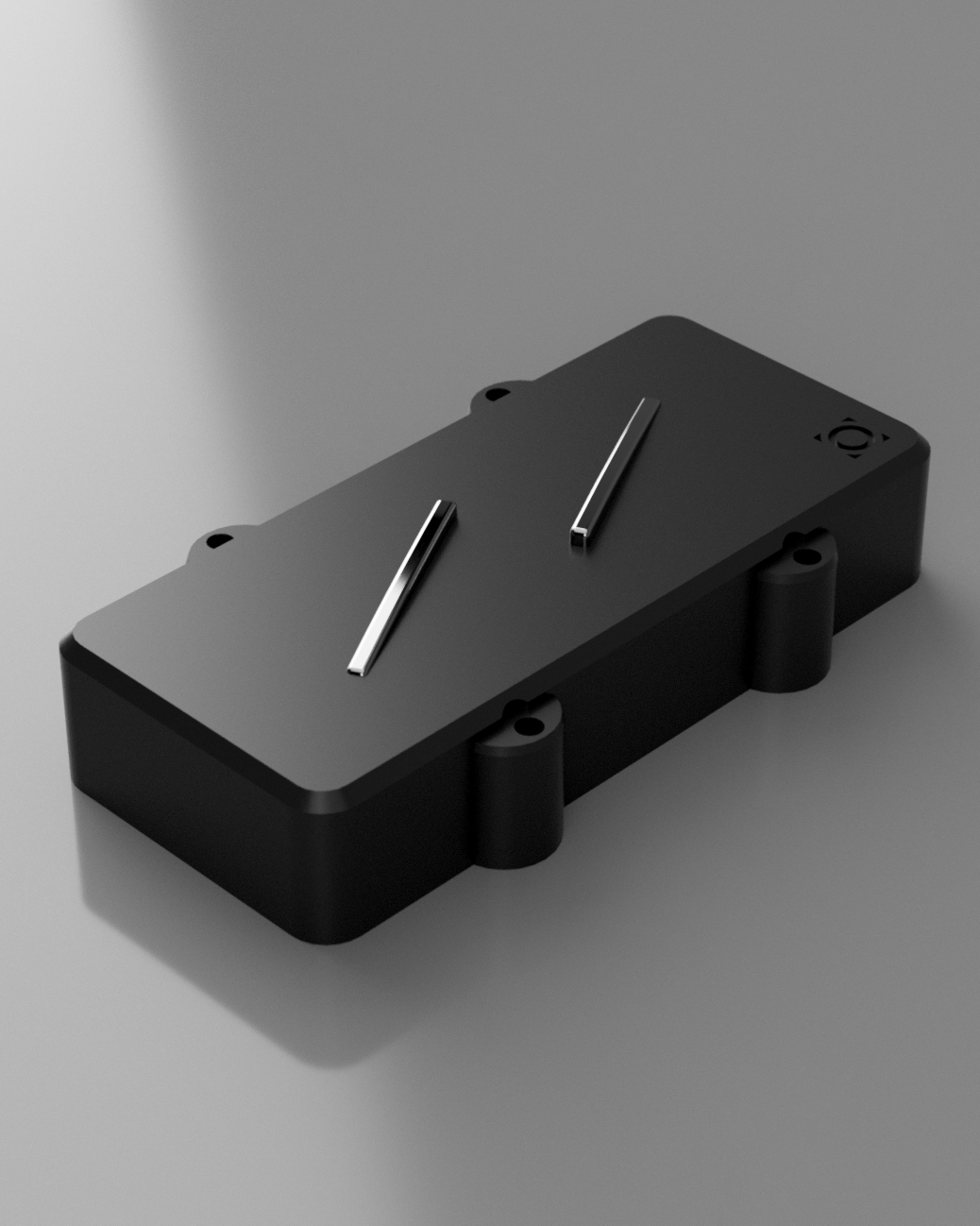

Omnia G6 JM - Dominion

Omnia JM Dominion.

Experience the unaltered tone of your favorite guitar.

Meet the Omnia Dominion - This exciting new variant caters to those fond of more vintage voiced instruments. Wider and flatter coils capture lower harmonics, enabling a warmer and fuller tone with a smooth top end - all while keeping the core perks of the Omnia technology like the high permeability coil cores to ensure full dynamic range, neodymium as base magnets for the most transparent translation of your favorite instrument's tone, shielding without eddy current losses and full hum free action.

Perfect for all tunings and tone shaping options.

It's retrofit compatible with most conventional humbuckers and covers all common 6 string spacings.

Some trivia for the geeks:

The base plate is a PCB with meshed ground plane to get shielding with minimal eddy current losses.

The bobbins and other internal parts are PLA printed with a precision FDM printer while the cover is SLA printed from UV and moisture resistant resin.

The blades are custom laser cut from high permeability metal which is an ideal coil core due to its electromagnetic properties as well as contributing to a balanced sound.

The bridge is wound slightly hotter than the neck to balance the denser top end harmonics of the bridge with the higher raw output of the neck position. They are intentionally voiced to match the classic top end of known and loved P90 style pickups.

Including:

2x wood screws and springs for mounting

a high quality shielded four conductor cable by Sommer featuring pin connectors to the pickup to fascilitate mounting without putting stress on the cable

Instructions, additional information and wiring diagrams

Customization

If you prefer a different voicing or coil property choice as well as custom artworks on the covers, contact me directly at info@nova-pickups.com and we'll make it work.

Disclaimer

This is a preorder - Shipping may take up to 6 weeks, but I'll try to get them finished asap. I also believe in transparency - feel free to contact me to get informed about the process of your order.

Specs

JM: 92.1 × 41.15mm without ears / 50mm with ears (Y-axis only). total pickup height 19mm, plus ±3mm for cable. Hole spacing 41 × 45mm, ear radius 5.9mm, ear width (max) 11.5mm.

Phase flipping is possible by flipping cold (blue/white) and hot (yellow/red) leads.
